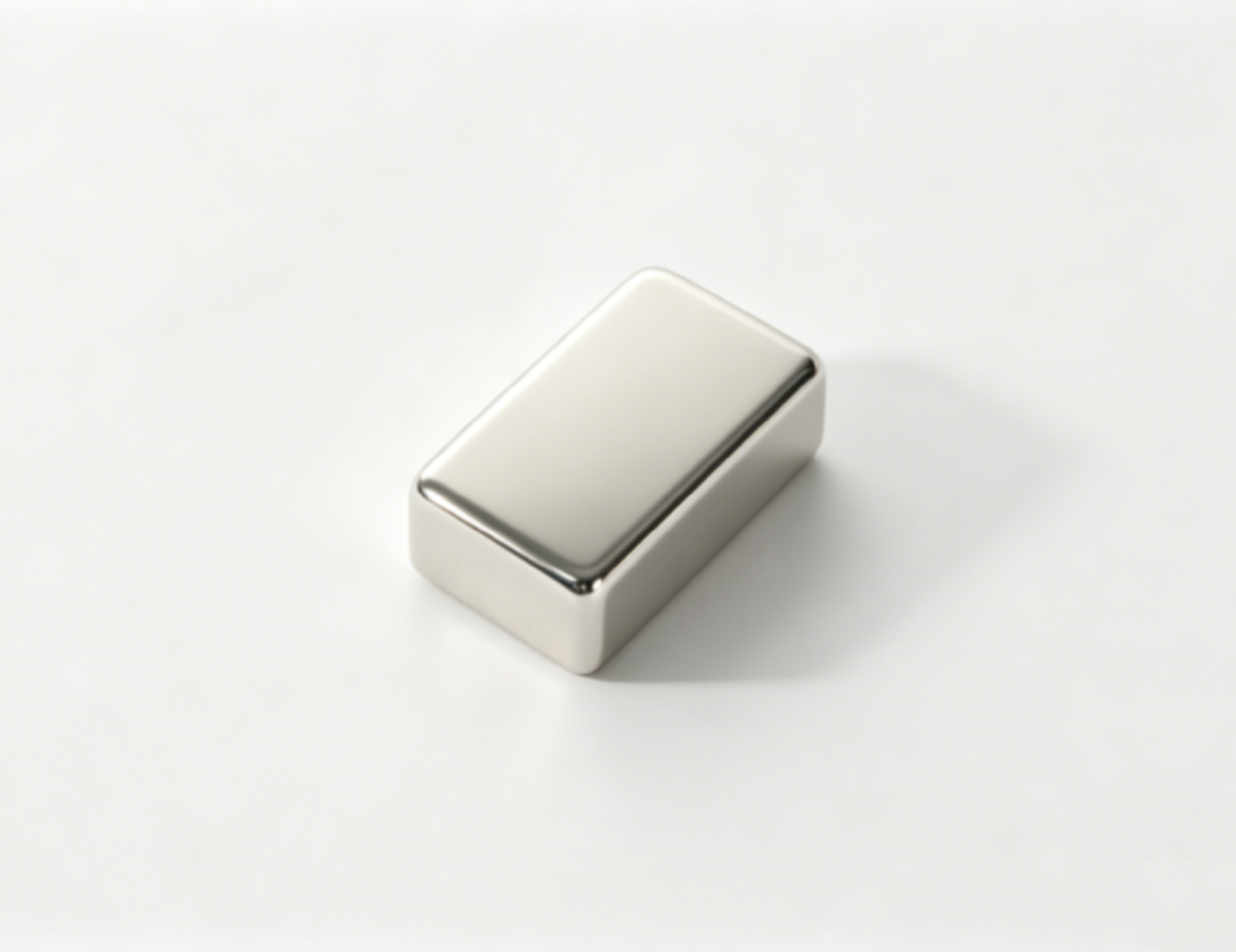

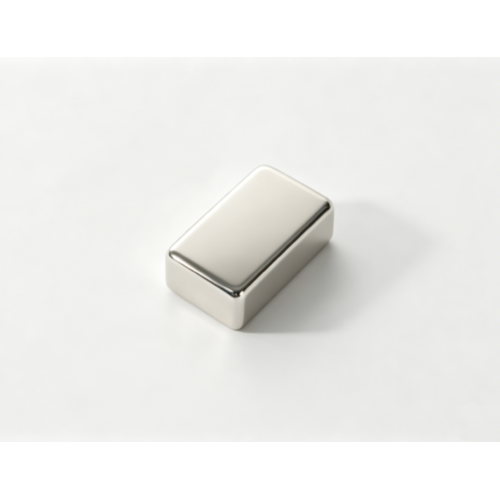

رقاقة تصفية النطاق الترددي المتكاملة القابلة للضبط

No.

Parameter

Symbol

Unit

Specification (-40℃～+85℃)

01

Frequency Range Range

F

MHz

1.5-4MHz；4-10MHz；10-30MHz

02

Insertion Loss

I.L

dB

≤3.5

03

-3dB Bandwidth

bandwidth

BW-3

MHz

≥6%*F0

04

Out-of-Band Rejection

Sel.

dBc

F0±10%≥12；F0±15%≥18

05

RF Input power

P(-1dB)

dBm

≤33

06

Tuning Time

Tv

us

≤5

07

VSWR

VSWR

≤1.5

08

Impedance(In/Out)

Zin/Zout

Ω

50

09

Supply Voltage

Vs

V

+3.3V~+12V

10

Power Consumption

P

mW

≤50

11

Center Frequency Drift

fo Drift

ppm/℃

≤80 ppm/℃

12

Operating Temperature

To

℃

-40～+85

13

Storage Temperature

Ts

℃

-55～+105

14

Weight

W

g

≤40

15

Dimensions

mm

50X32X15（±0.2）

Descriptions

Address Code Definition:
10-bit parallel binary code A0–A9, compatible with CMOS and TTL logic levels.

· A0–A7 control voltage levels: Logic Low: 0 ~ 0.7 V; Logic High: 2.4 ~ 3.3 V .

· A0–A7 are used as the in-band address code.

· A8 and A9 are used as band selection codes.

Address Calculation (rounded to integer)

Address Code={(fx-flow）/(fhigh-flow)}*250

Where:

·  fx: desired intra-segment center frequency

·  flow: lowest frequency in the segment

·  fhigh: highest frequency in the segment

·  250: intra-segment steps

If the calculated result contains a decimal fraction, it shall be rounded to the nearest integer.

A8

A9

Frequency Band

0

0

1.5 ~ 4 MHz

1

0

4 ~ 10 MHz

0

1

10 ~ 30 MHz
