Foshan Faradi Electronics Co., Ltd
| الدفع نوع: | L/C,T/T |
| إنكوترم: | FOB,EXW |
| أدني كمية الطلب: | 1 Piece/Pieces |
| نقل: | Ocean,Land,Air,Express |
الظل:

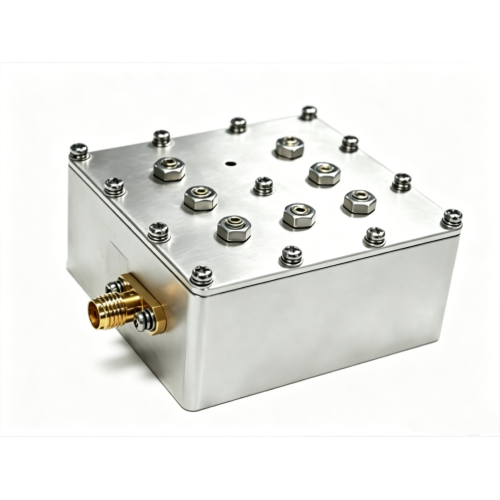

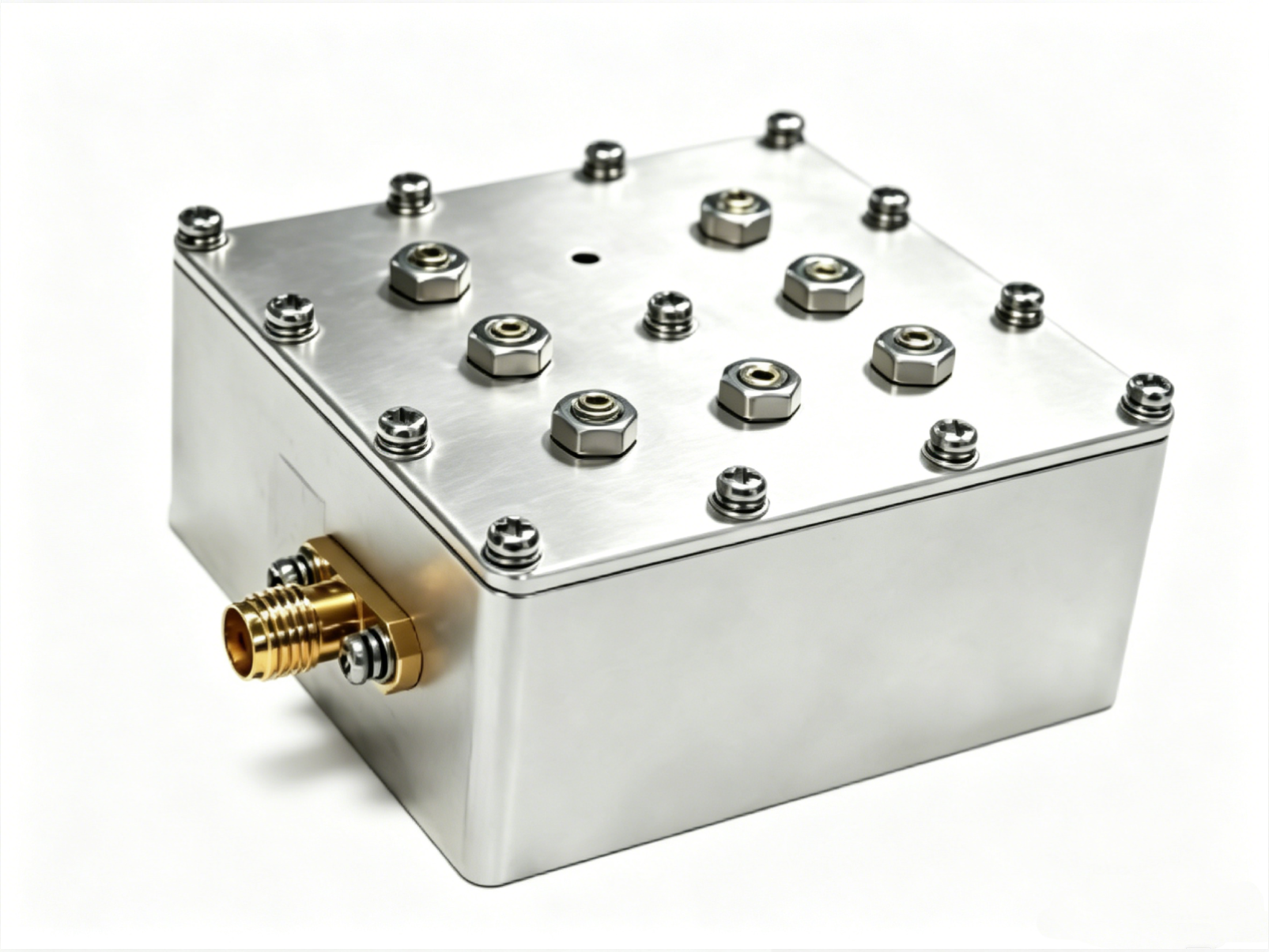

نموذج: SDC5758-100-J
| بيع الوحدات | : | Piece/Pieces |
| تحميل | : |
|
The file is encrypted. Please fill in the following information to continue accessing it
|
No. |
Parameter |
Unit |
Specifications |
|
01 |
Pass Band Frequency |
MHz |
5725-5850 |
|
02 |
Pass Band Insertion Loss |
dB |
≤0.8 |
|
03 |
Pass Band P-P Ripple |
dB |
≤0.4 |
|
04 |
VSWR |
|
≤1.5 |
|
05 |
Stop Band Rejection |
dB |
≥50dB@DC-5525MHz ≥50dB@6050-3000MHz |
|
06 |
RF Power |
W |
≥100 |
|
07 |
Temperature Range |
℃ |
-40～+70 |
|
08 |
Connector Type |
|
SMA female |
|
09 |
Dimensions |
mm |
54*35*16（Does not include connectors） |
